Side

class Side

Side of a hub or a sensor. These devices are mostly rectangular boxes with six sides:

TOP
BOTTOM
FRONT
BACK
LEFT
RIGHT

Screens or light matrices have only four sides. For those, TOP is treated the same as FRONT, and BOTTOM is treated the same as BACK. The diagrams below define the sides for relevant devices.

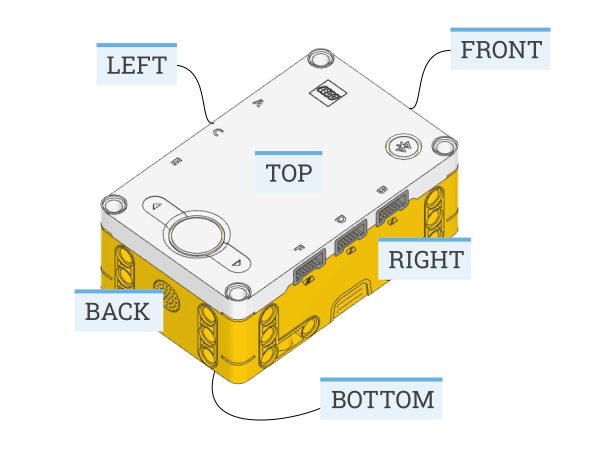

Prime Hub

../_images/orientation_primehub.png

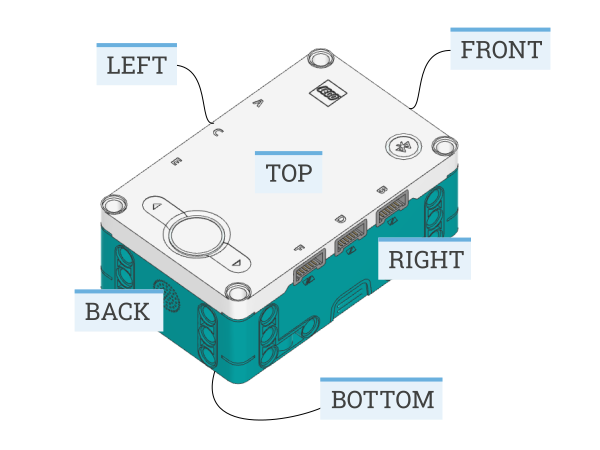

Inventor Hub

../_images/orientation_inventorhub.png

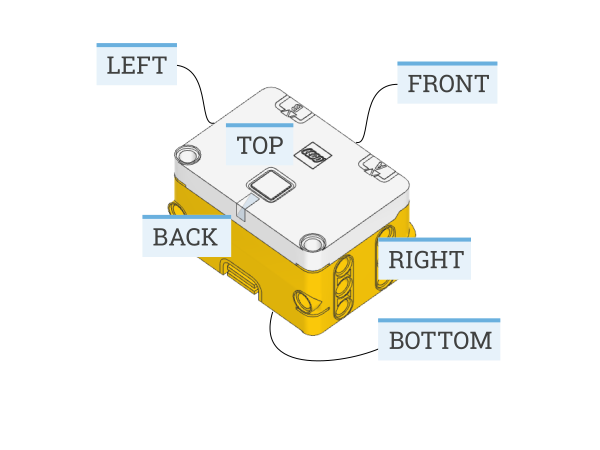

Essential Hub

../_images/orientation_essentialhub.png

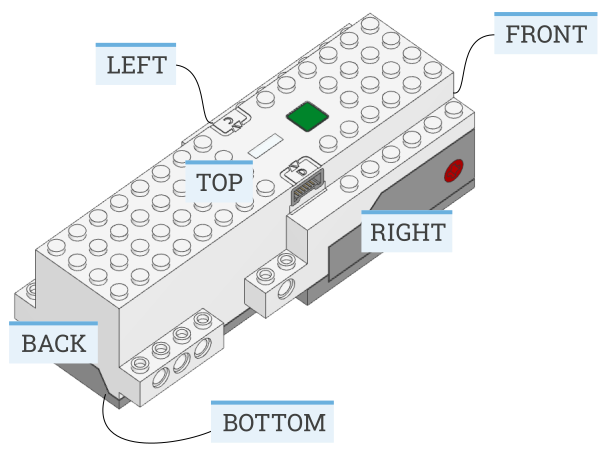

Move Hub

../_images/orientation_movehub.png

Technic Hub

../_images/orientation_technichub.png

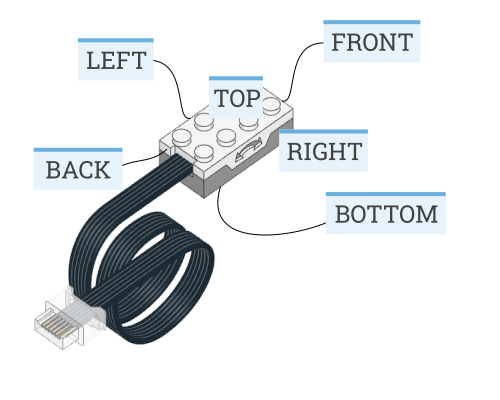

Tilt Sensor

../_images/orientation_tiltsensor.png
